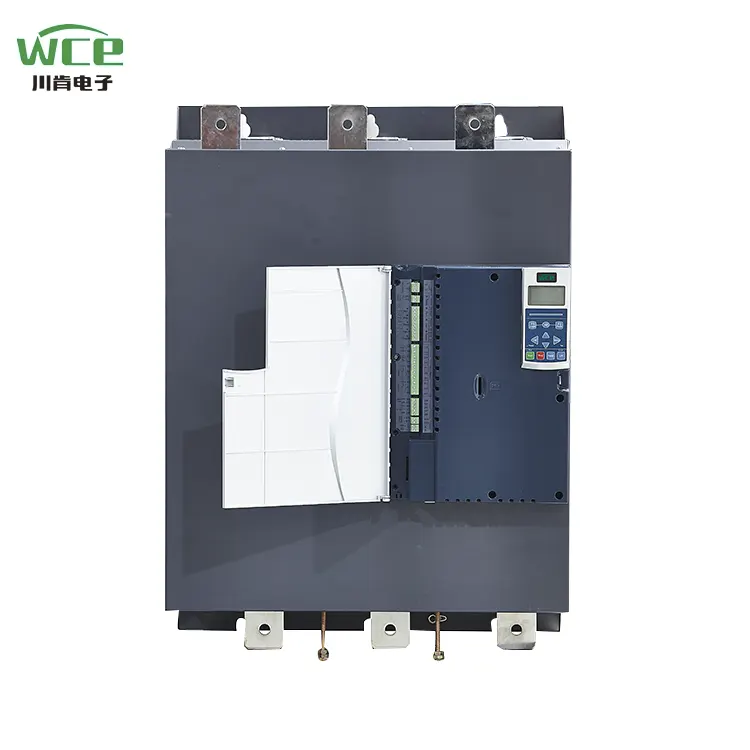

500KW Built in Bypass Soft Starter

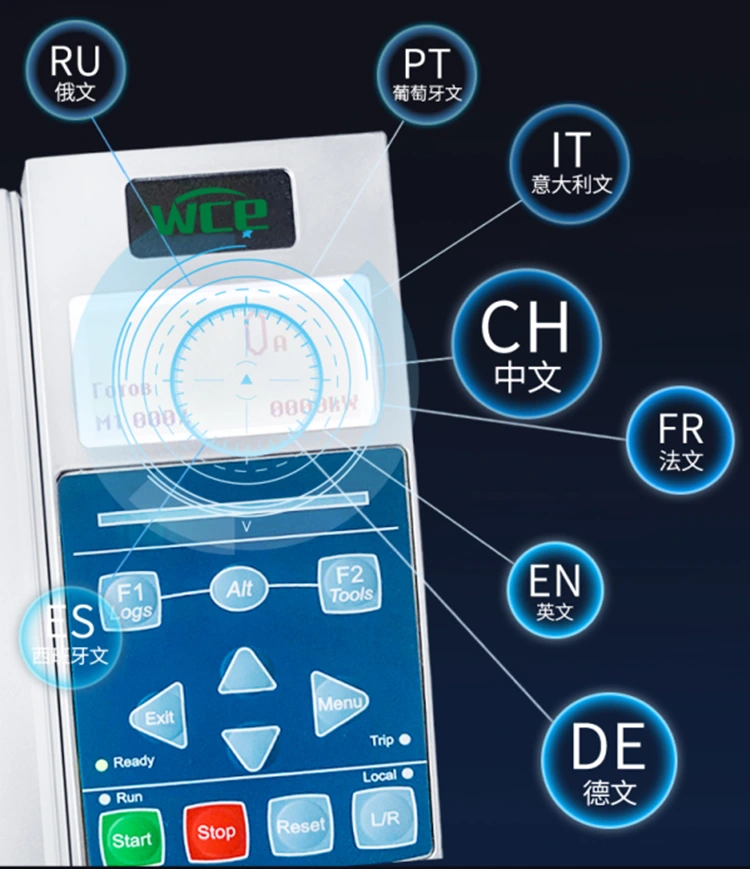

Intelligent interaction and convenient operation: The 7000 series soft starters are equipped with LCD liquid crystal displays, featuring a simple and intuitive interface design and a smooth and convenient operation experience. The system is equipped with an 8-language display function and supports customizing specific national languages, fully meeting the needs of users in different regions.

Multi-communication and remote intelligent control: It is equipped with the standard Modbus 485 communication function, and also supports customized communication methods such as Siemens Profibus protocol and mobile phone APP, helping users achieve efficient remote debugging and precise control, and breaking the spatial limitations.

Outstanding performance and long-lasting durability: Equipped with a brand-new custom DC contactor, compared with ordinary AC contactors, its performance is improved by 3 times, heat is reduced by 2.6 times, safety is enhanced by 25%, energy-saving efficiency reaches 20%, and the service life exceeds 100,000 times, providing reliable guarantee for the stable operation of the equipment.

Efficient heat dissipation and stable operation: Equipped with a 24V high-speed DC fan and an innovative 360° all-round heat dissipation design, it provides strong wind force, ensuring that the equipment maintains a good heat dissipation state and stable performance throughout operation.

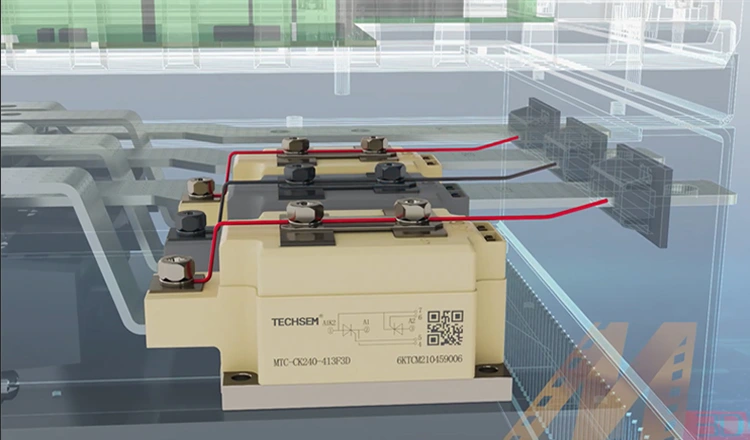

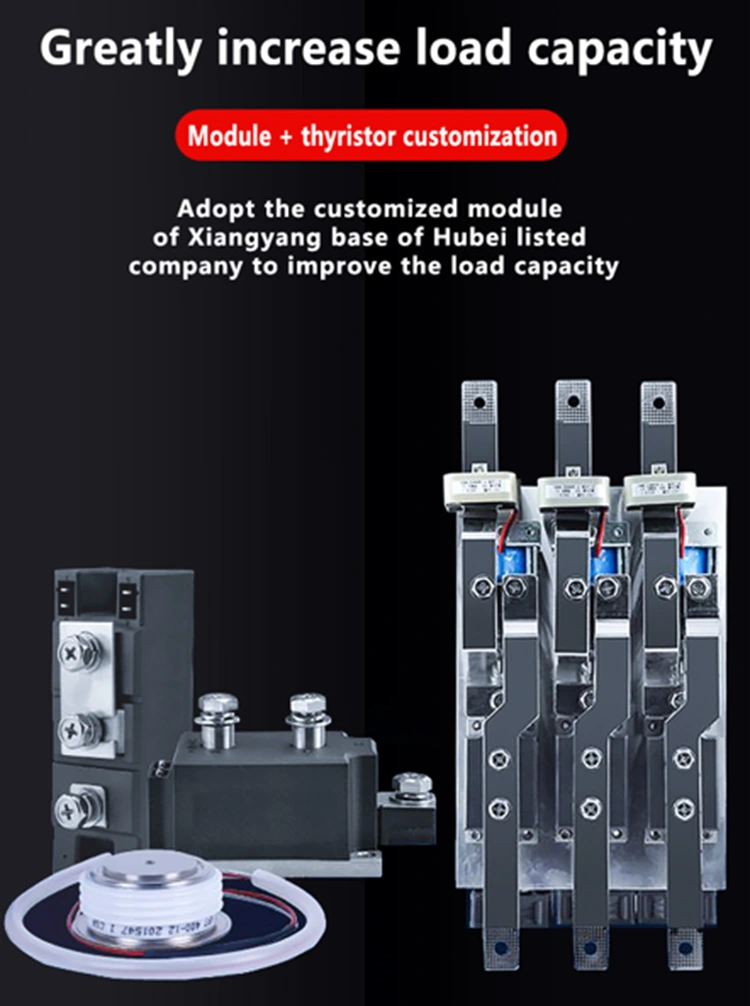

Deep cooperation and quality upgrade: We have reached a deep cooperation with Hubei Taiji, a domestic listed company, and adopted customized modules and thyristors, which are different from the common modules in the market. This significantly enhances the load capacity and lays a solid foundation for the efficient operation of the equipment.

Streamlined design, cost savings: No need to install external bypass contactors, effectively saving installation space, reducing cable costs, simplifying the installation process, and making installation more convenient and faster.

Innovative control, easy start: Compared with conventional soft starters, a new square torque start control method has been added, providing a greater starting torque, achieving easy and smooth start, and adapting to more complex working conditions.

Real-time monitoring, safety assurance: Equipped with a PT100 input terminal, it can monitor the motor temperature in real time, promptly grasp the motor's operating status, effectively prevent faults caused by abnormal temperature, and ensure the safe operation of the motor.

Humanized design, worry-free installation: It adopts plug-and-pull control terminal blocks, making installation and operation simple and convenient. Just unplug the terminal blocks to complete the wiring and then reinject them, which greatly improves the installation efficiency.

Simulation testing, reliable verification: It is equipped with operation simulation function. Even when the main circuit of the soft starter is not connected to the power supply voltage, it can simulate the starting, running and stopping process of the motor, quickly confirming whether the working state of the soft starter's own components is normal.

Emergency support and continuous operation: An emergency start function has been added. Even in the event of a sudden breakdown of one phase of the thyristor, the soft starter can still maintain normal operation, ensuring the continuous operation of key equipment and reducing the risk of shutdown.

Product Parameter (Specification)

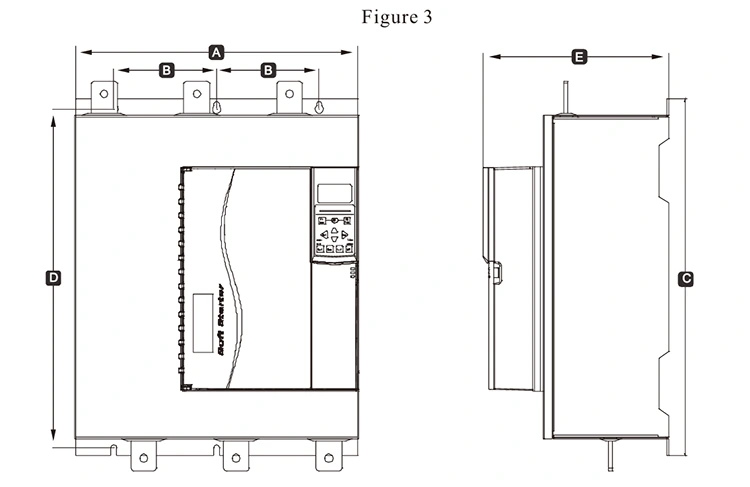

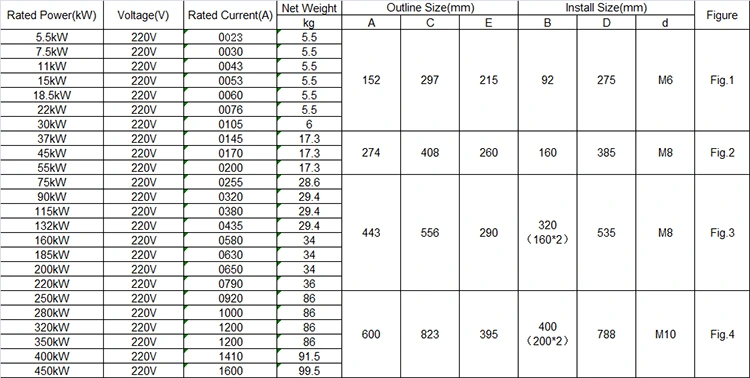

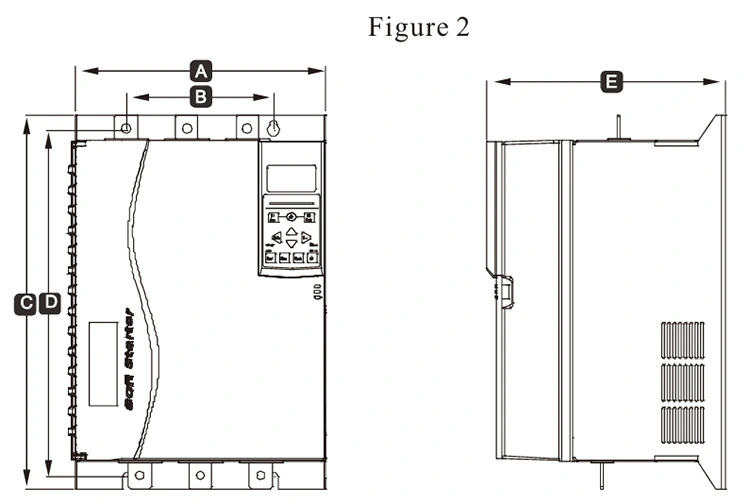

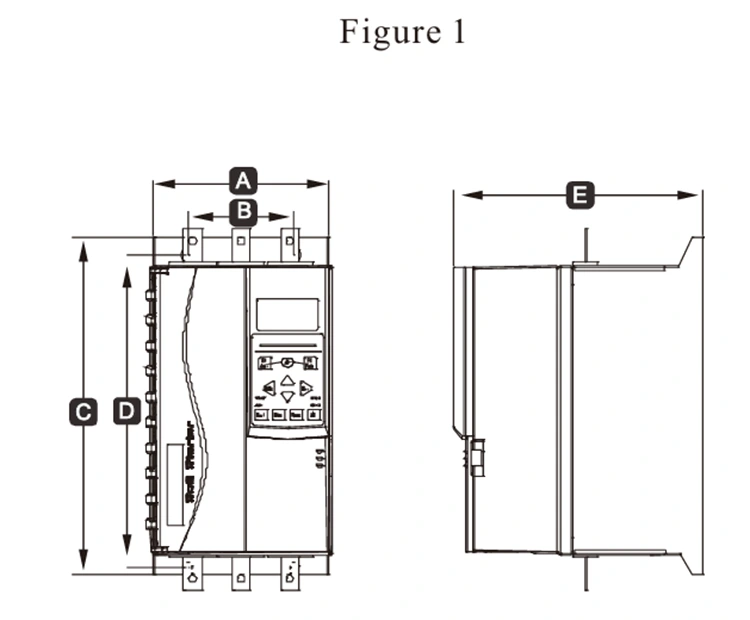

Size, weight, and current of 220V

Size, weight, and current of 380V

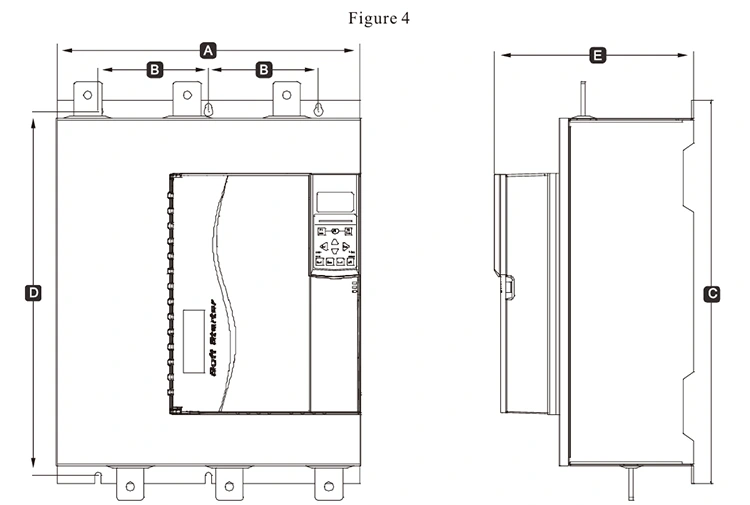

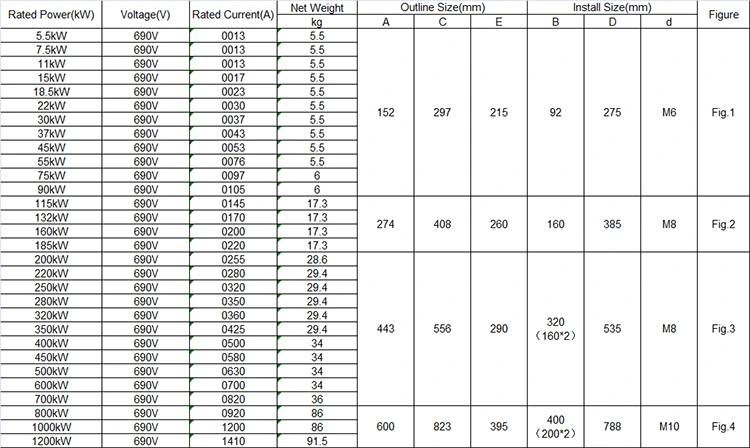

Size, weight, and current of 690V

Product Feature

1. Communication function

Comes with MODBUS RTU communication, Profibus and Profinet communication can be added by adding expansion cards.

2, can be external keyboard +4 lines LCD screen

The keyboard can be quickly inserted and removed to meet the needs of remote operation.

3, more comprehensive motor protection function

Overvoltage protection, undervoltage protection, overcurrent protection, overload protection, underload protection, phase loss protection, bypass fault, thyristor fault, three-phase current unbalance, overheat protection, etc.

4, wide power supply voltage range

Meet the main power supply input voltage of 220-690V general purpose.

5. Pluggable terminals

One set of communication terminals, Five groups of digital input terminals,One set of analog output,Three sets of programmable relays，Motor thermistor terminals and PT100 temperature terminals.

◆Three-phase power supply: AC220V, AC380V, AC690V±10%

◆Rated current: 13A-1600A,

◆Applicable motor: general squirrel cage type AC asynchronous motor

◆Starting mode: voltage ramp, current ramp, torque

◆Parking mode: Soft stop,Free stop，Brake stop, adaptive stop.

◆Logic input: Impedance 1.8KΩ, power +24V

◆Starting frequency: It is recommended to start no more than 10 times per hour

◆Protection level: IP20

◆Cooling mode: air cooling

◆Installation mode: wall hanging

◆Environmental conditions: the altitude exceeds 2000 meters, the capacity should be reduced accordingly, and the ambient temperature is between -10 and +40°C

The corresponding humidity does not exceed 95%(20℃±5℃), no flammable, explosive, corrosive gas, no conductive dust, indoor installation, good ventilation, vibration less than 0.5G

Product Application

Products can be used in metallurgy and chemical industry, compressors, cranes, municipal engineering occasions.

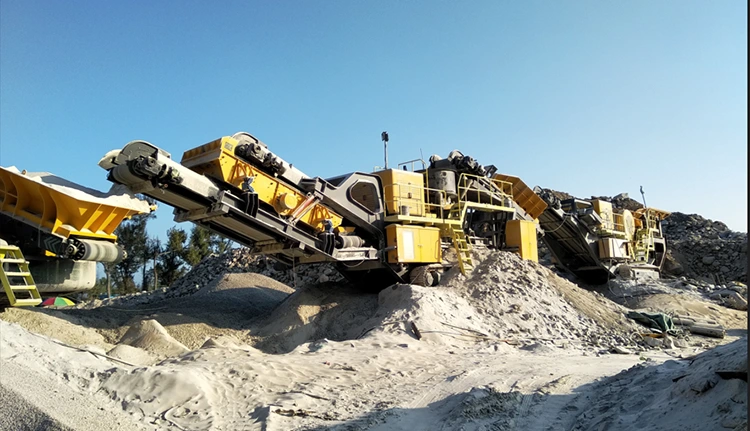

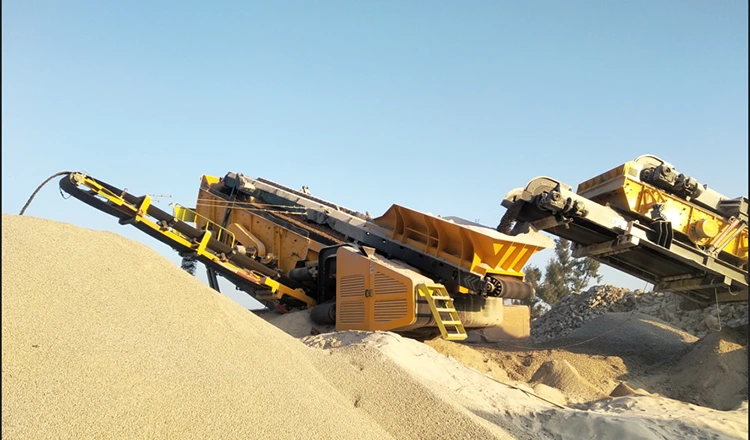

Crusher, sort stones of different sizes.

Online soft starter is widely used in the crusher industry, it can be used in impact crusher, jaw crusher, cone crusher, hammer crusher and so on. Can be used on high-power host, reduce the starting current, reduce the mechanical impact. The soft starter can automatically adjust the output power of the motor according to the actual load of the crusher. When the crusher is in no-load or light-load operation, the soft starter reduces the voltage and current of the motor, so that the motor runs at a lower power, so as to achieve the purpose of energy saving. According to statistics, after using the soft starter, the energy consumption of the crusher can be reduced by about 10%-30%.

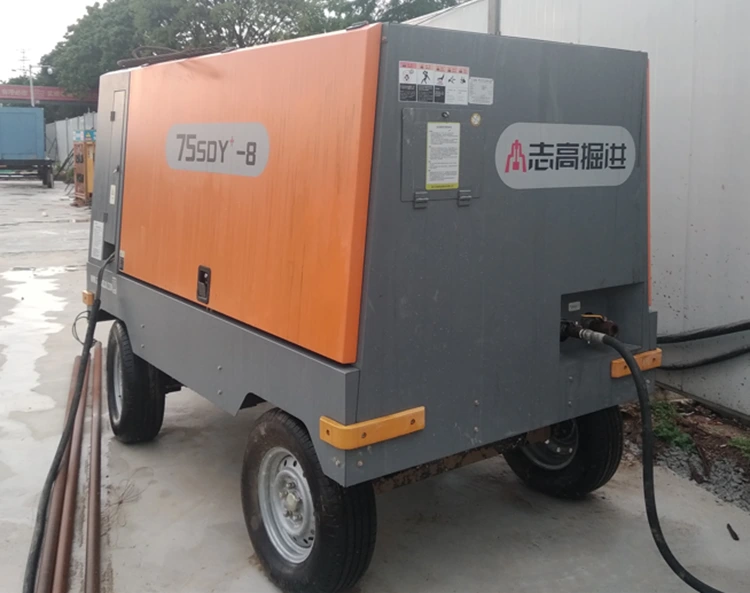

Air compressor

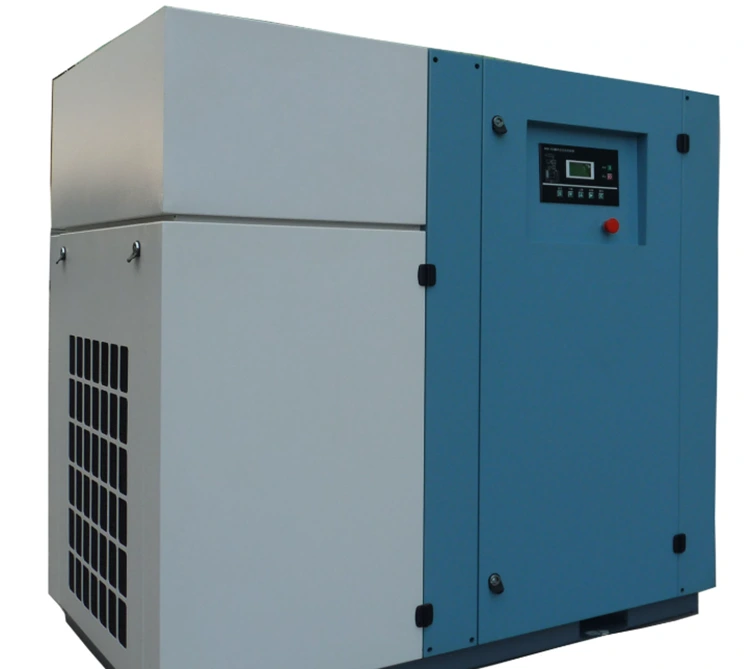

Air compressor soft starter is a special soft starter tailored for various air compressors. Installing a soft starter on the air compressor can make the air supply pressure stable, and through the pressure regulator, the air compressor can keep working under the set pressure value, the pressure is stable and reliable, and the pressure can be stepless setting and adjustable at any time. Motor to achieve soft start, compressor service life and maintenance cycle will be greatly extended. The air compressor exhaust volume is controlled by the air compressor speed, the air valve plate in the cylinder is no longer repeatedly opened and closed, and the working conditions such as the valve seat and spring are greatly improved, which avoids the sharp flow and impact of high temperature and high pressure gas, and reduces the maintenance workload.

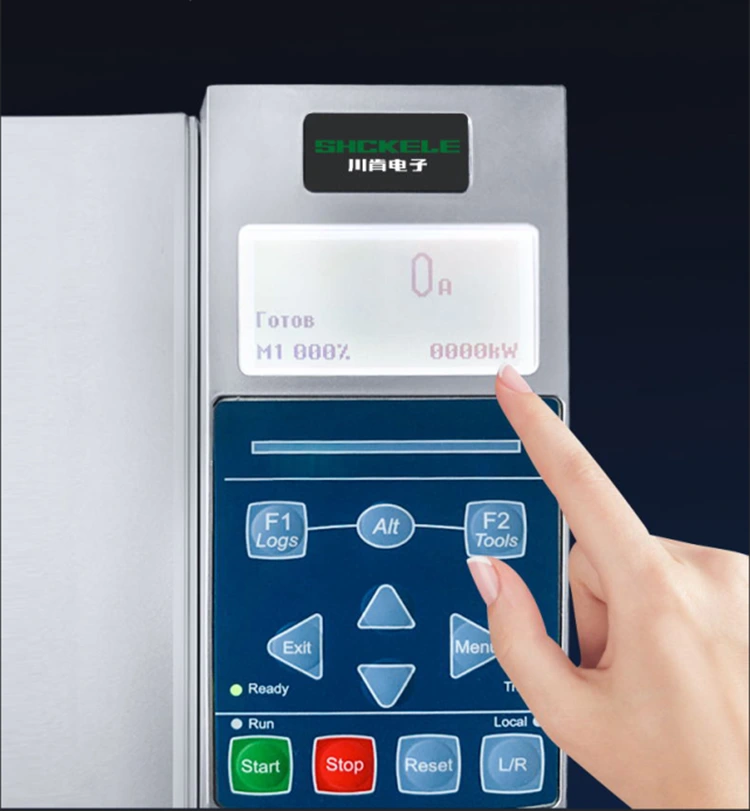

High-definition LCD four-line display, easy to operate. It comes with multiple national language displays and can be customized when necessary. The keyboard is pluggable and easy to move.

The thyristor with an internal bypass soft starter only works during startup and switches to the contactor during operation, so it generates less heat. However, we still installed a fan to cool the contactor. Install a fan to cool it down. All 75KW and above 7000 series soft starters are equipped with 24V high-speed DC fans, providing 360° all-round heat dissipation and stronger wind force. It not only reduces unexpected shutdowns caused by overheating, but also significantly extends the service life of the soft starter.

We have deep cooperation with Hubei Taiji, a domestic listed company, and use customized modules and thyristors, different from the generic modules supplied on the market, to improve the load capacity. Our DC contactors are also specially customized, all featuring silver contacts. The contact surface of the contacts is larger and can achieve nearly 100,000 engagement times, significantly increasing the service life.

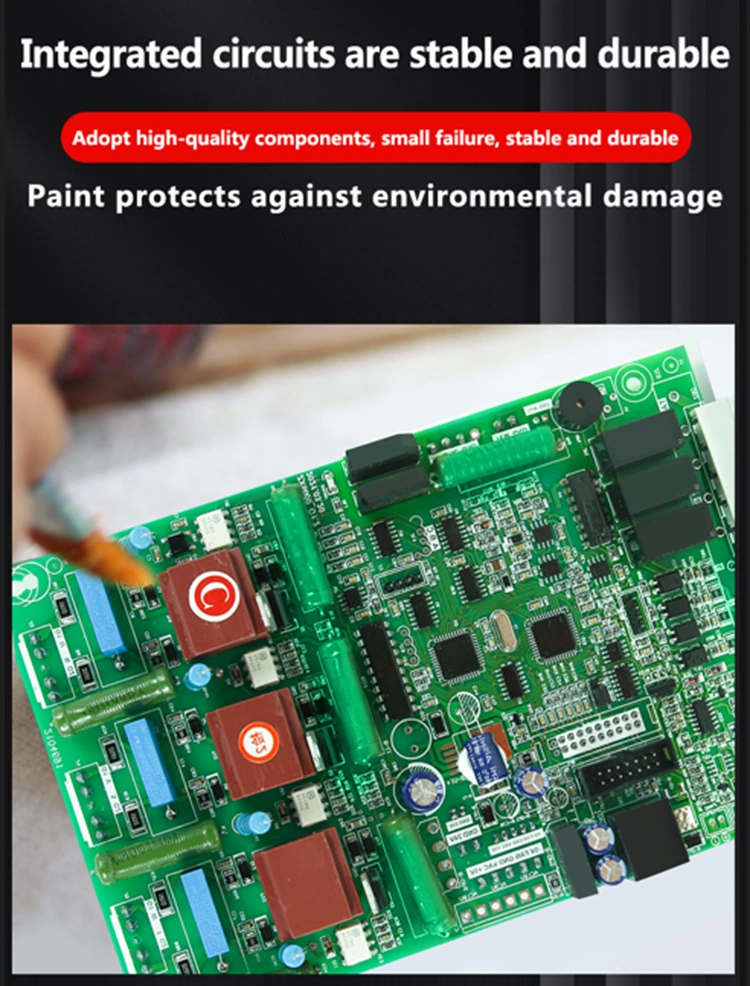

The main purpose of the soft starter circuit board brush paint (usually three anti-paint, insulating paint or moisture-proof coating) is to protect the stability and life of the circuit board in a complex working environment, in order to ensure the service life of the circuit board is longer, we all use high-quality patches and plug-ins, the probability of failure is very low, and all use the machine spray three anti-paint, moisture-proof, dustproof, anti-short circuit. Increased durability and safety.

The unique emergency operation function. Conventional soft starters cannot operate when one phase of the thyristor is damaged. The emergency operation function of the 7000 series enables the soft starter to still operate in an emergency when one phase of the thyristor is broken down, reducing the economic losses caused by machine damage and shutdown for users.

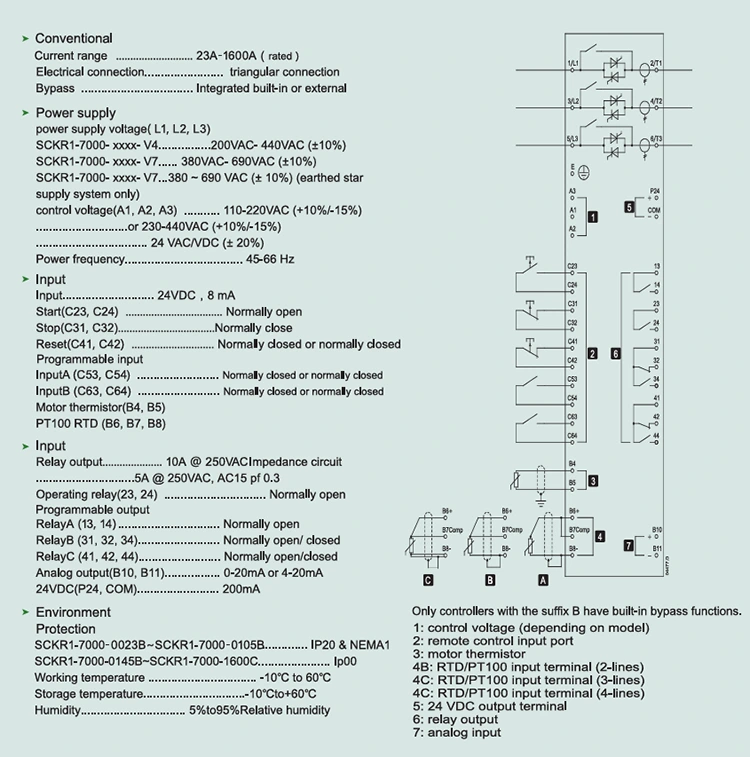

SOFT STARTER wiring diagram.
