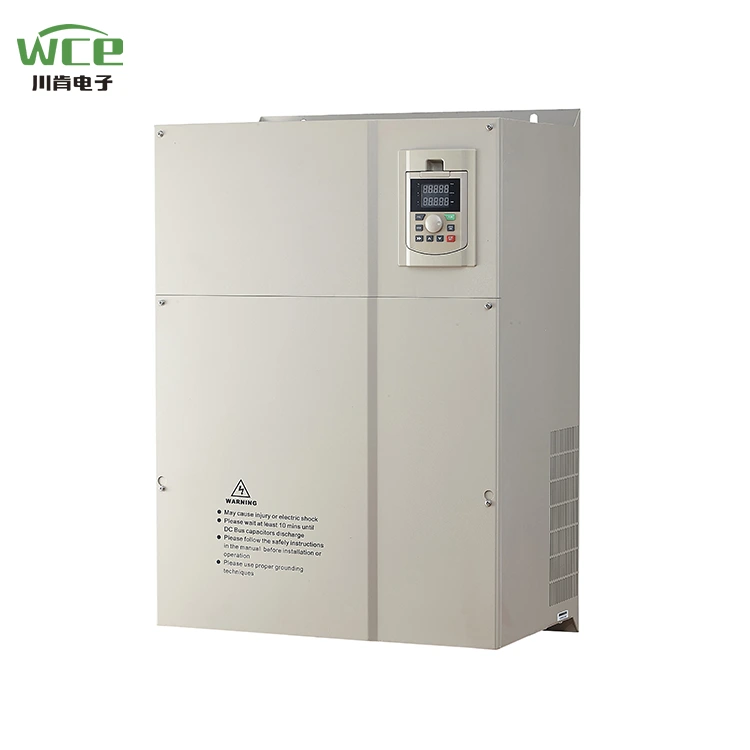

55KW AC Frequency Inverter VFD

WCE's SCK300 series drives are high-performance, multi-functional drives designed for industrial automation, widely used in fans, pumps, conveyor belts, crushers and other equipment. Its core adopts advanced vector control technology, which has the characteristics of high speed regulation precision, energy saving and high efficiency, stable operation, etc., and can meet the needs of various industrial scenarios. We have also made custom solutions for mobile crusher inverter control cabinets, which operate perfectly in many places across the country.

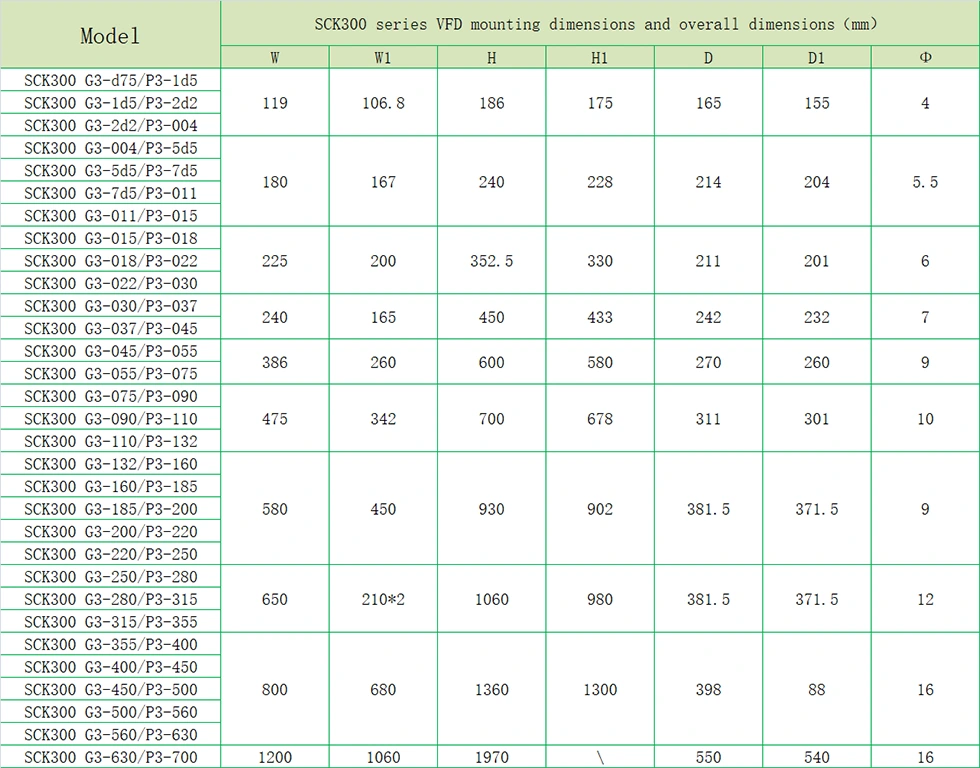

Product Parameter (Specification)

Product Feature

●I/O features

◆Input voltage range: 220V/380V/660V±15%

◆Input frequency range: 47 ~ 63Hz

◆Output voltage range: 0 ~ rated input voltage

Output frequency range: 0 ~ 400Hz

●Functional Features

◆Frequency setting mode: digital setting, analog setting, serial communication setting, multi-speed, PID setting, etc.

◆PID control function

◆Multi-speed control function: 16 speed control

◆Swing frequency control function

◆Instantaneous power failure without stopping function

◆QUICK/JOG key function: multi-function shortcut key freely defined by users

◆Automatic voltage adjustment function: When the power grid voltage changes, it can automatically keep the output voltage constant

◆Provide up to 25 kinds of fault protection functions: over current, over voltage, under voltage, over temperature, phase loss, overload and other protection functions

●Peripheral interface features

◆Programmable digital input: 8 input

◆Programmable analog input: AI1:0 ~ 10V input, AI2:0 ~ 10V or 0 ~ 20mA input

◆Open collector output: 1 output

◆Relay output: 2 outputs

◆Analog output: 2 outputs, 0/4 ~ 20mA or 0 ~ 10V respectively

●Technical performance characteristics

◆Control mode: no PG vector control, V/F control, torque control.

◆Overload capacity: 150% rated current 60s; 180% rated current 10s

◆Starting torque: no PG vector control: 0.5Hz/150% (SVC)

◆Speed ratio: no PG vector control: 1:100

Product Application

Products can be used in mining, fans, pumps, new energy equipment and other occasions.

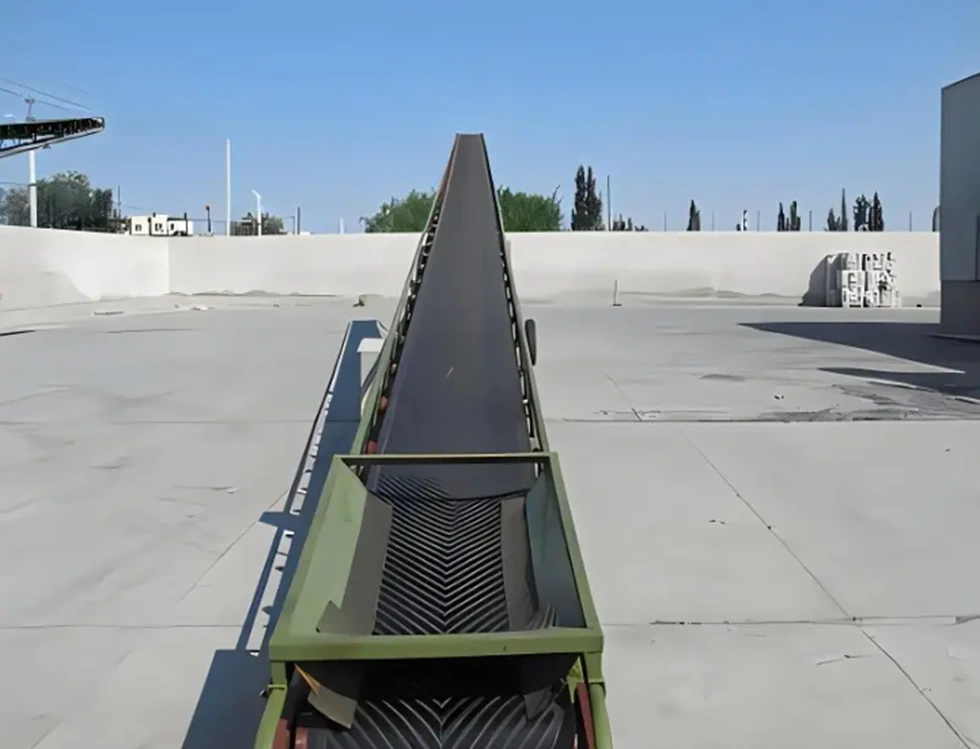

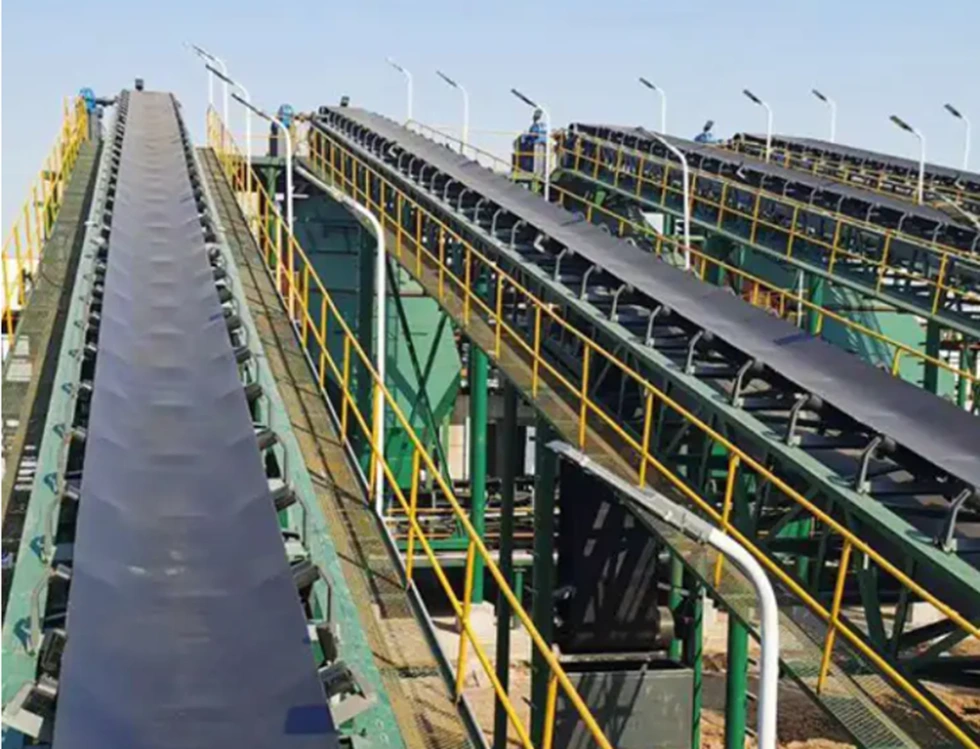

Conveyor belt, transport goods

The application of frequency converter in conveyor system is one of the key technologies to achieve efficient and accurate material transmission and sorting

1. Multi-speed material transmission

Scenario: Transfer packages of different sizes/weights in a logistics warehouse

Realized:

Multiple sets of speed parameters (such as 30Hz/50Hz/80Hz) are preset and switched by PLC or HMI.

Combined with the photoelectric sensor to detect the package size, automatically match the speed (large low-speed anti-slip, small high-speed efficiency).

2. Precise positioning and sorting

Scenario: The express sorting center diverts parcels by destination

Realized:

Encoder feedback + inverter closed-loop control, positioning accuracy up to ±1mm.

When the package arrives at the sorting port, the inverter performs a fixed stop (DC braking + zero speed hover) in conjunction with the push rod/robotic arm action.

3. Synchronous collaborative control

Scenario: Multi-segment conveyor belt relay transmission

Realized:

Master/slave control mode: the master frequency converter sends frequency instructions, and the slave machine synchronously follows through Modbus/CANopen.

Cascade control: The rear conveyor is 5% faster than the front, avoiding the accumulation of items.

Air compressor

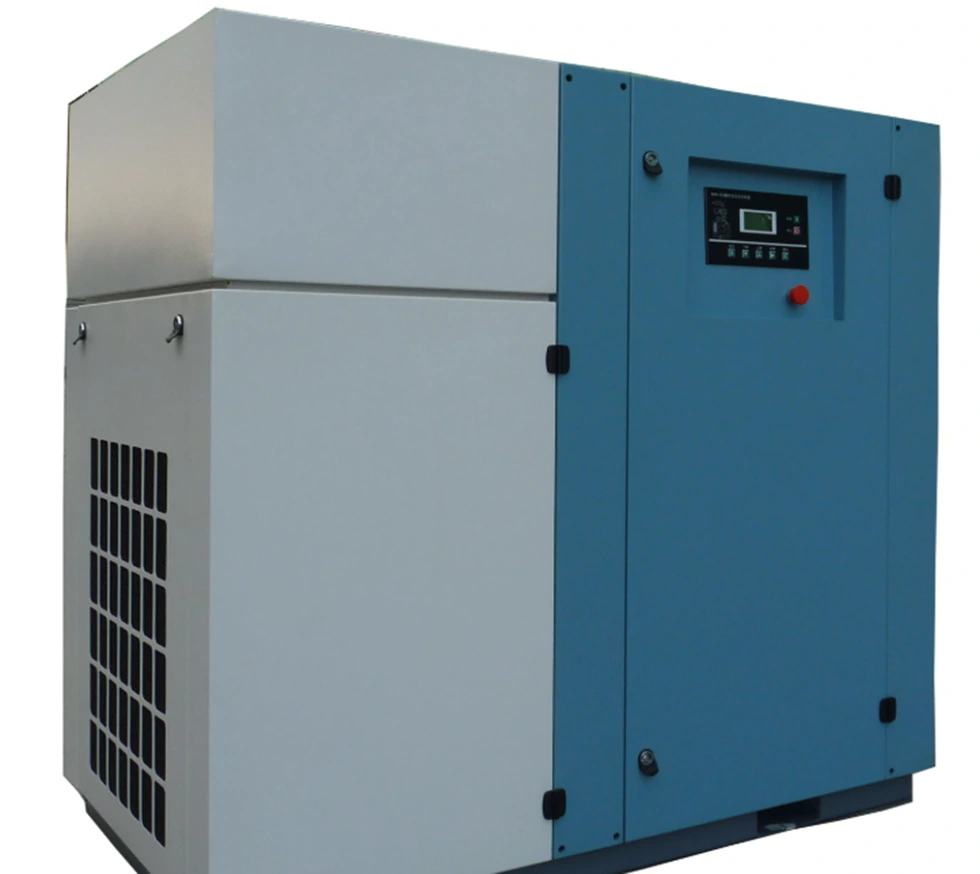

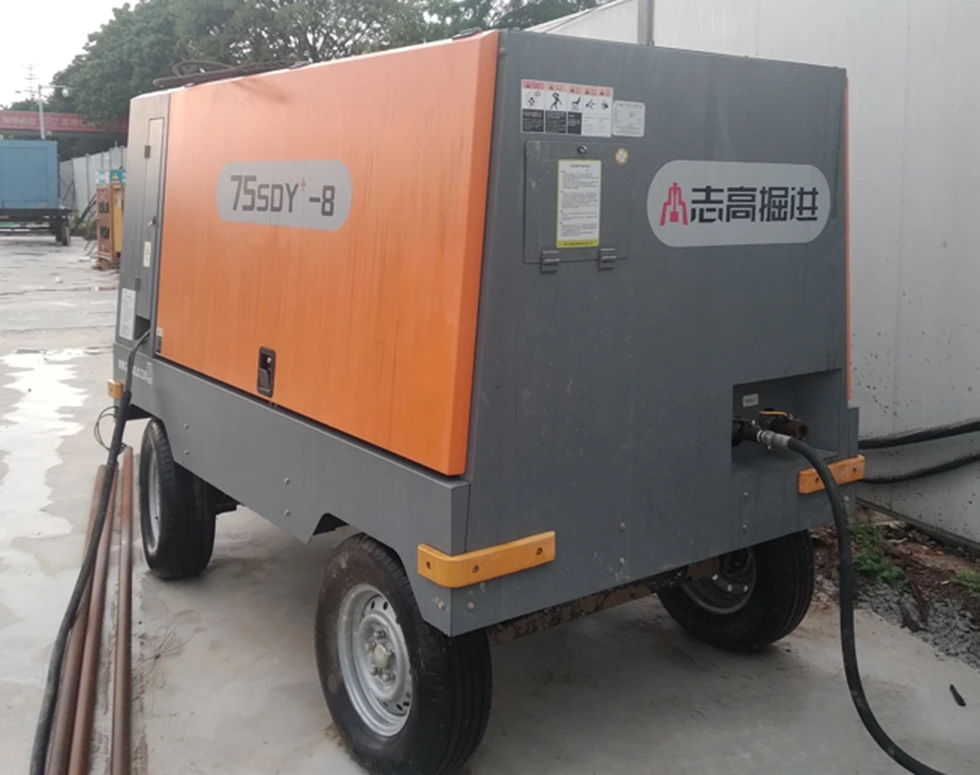

Air compressor inverter is a special inverter tailored for all kinds of air compressors. Variable frequency transformation of air compressor can make the gas supply pressure stable, through the pressure regulator, the air compressor can keep working under the set pressure value, the pressure is stable and reliable, and the pressure can be stepless setting and adjustable at any time. Motor to achieve soft start, compressor service life and maintenance cycle will be greatly extended. The air compressor exhaust volume is controlled by the speed of the air compressor, the air valve plate in the cylinder is no longer repeatedly opened and closed, and the working conditions such as the valve seat and spring are greatly improved, which avoids the sharp flow and impact of high temperature and high pressure gas, and the maintenance workload is reduced.

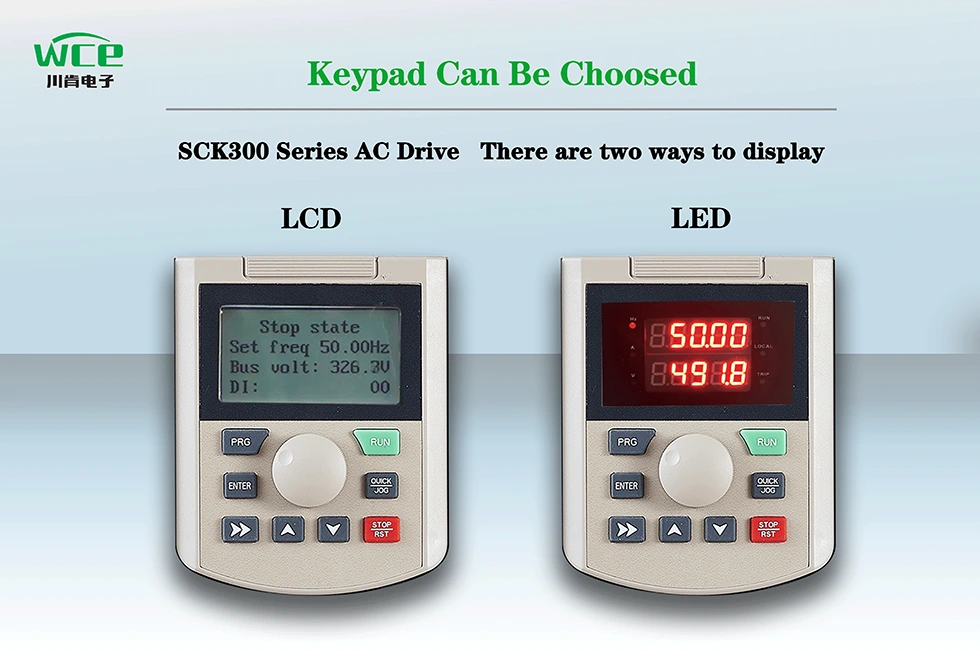

LCD displays multiple language text and graphics, LED display numbers, more intuitive, according to your preferences

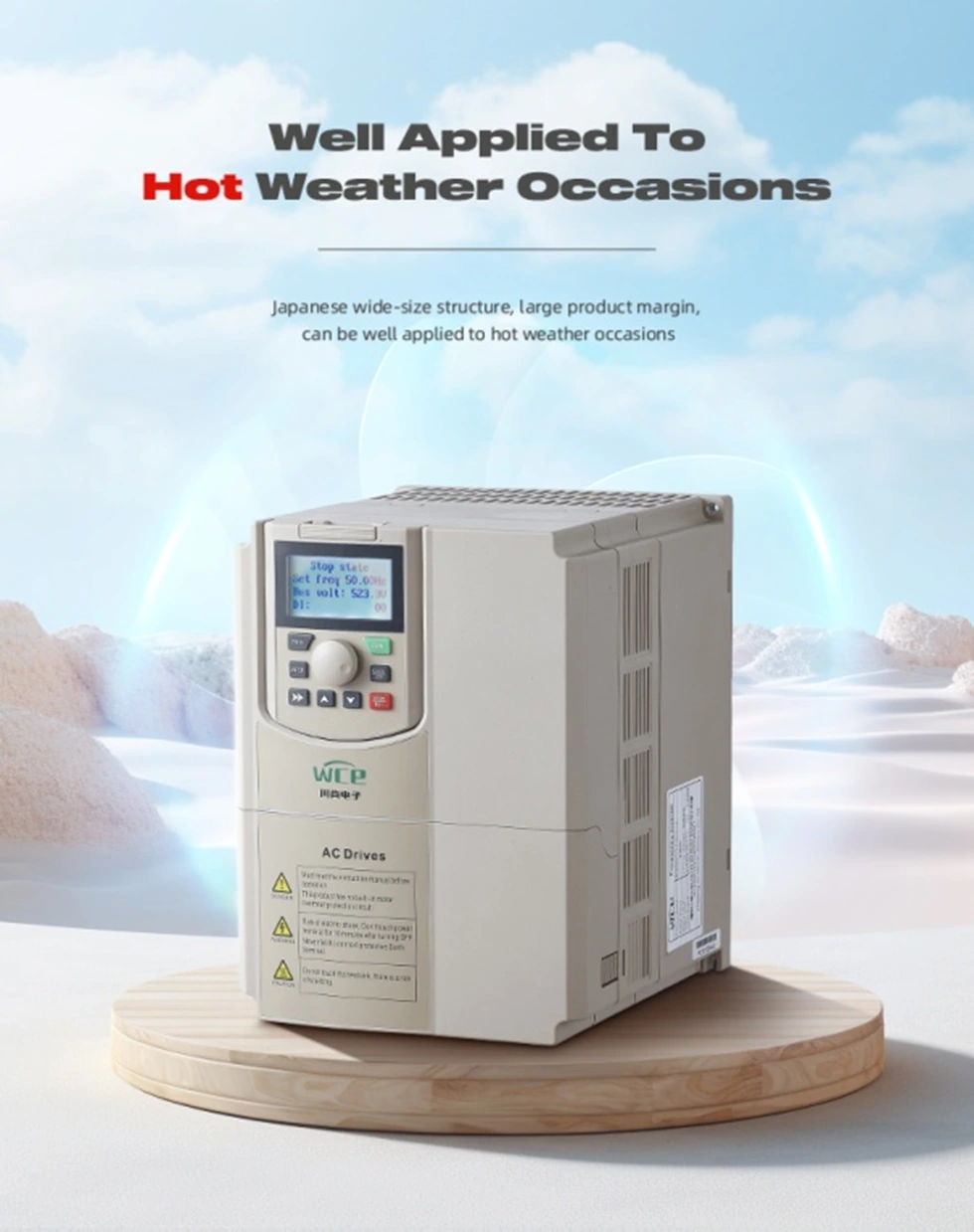

VFD volume is large structure, larger radiator, product utilization rate, can work normally in hot environment such as tropical.

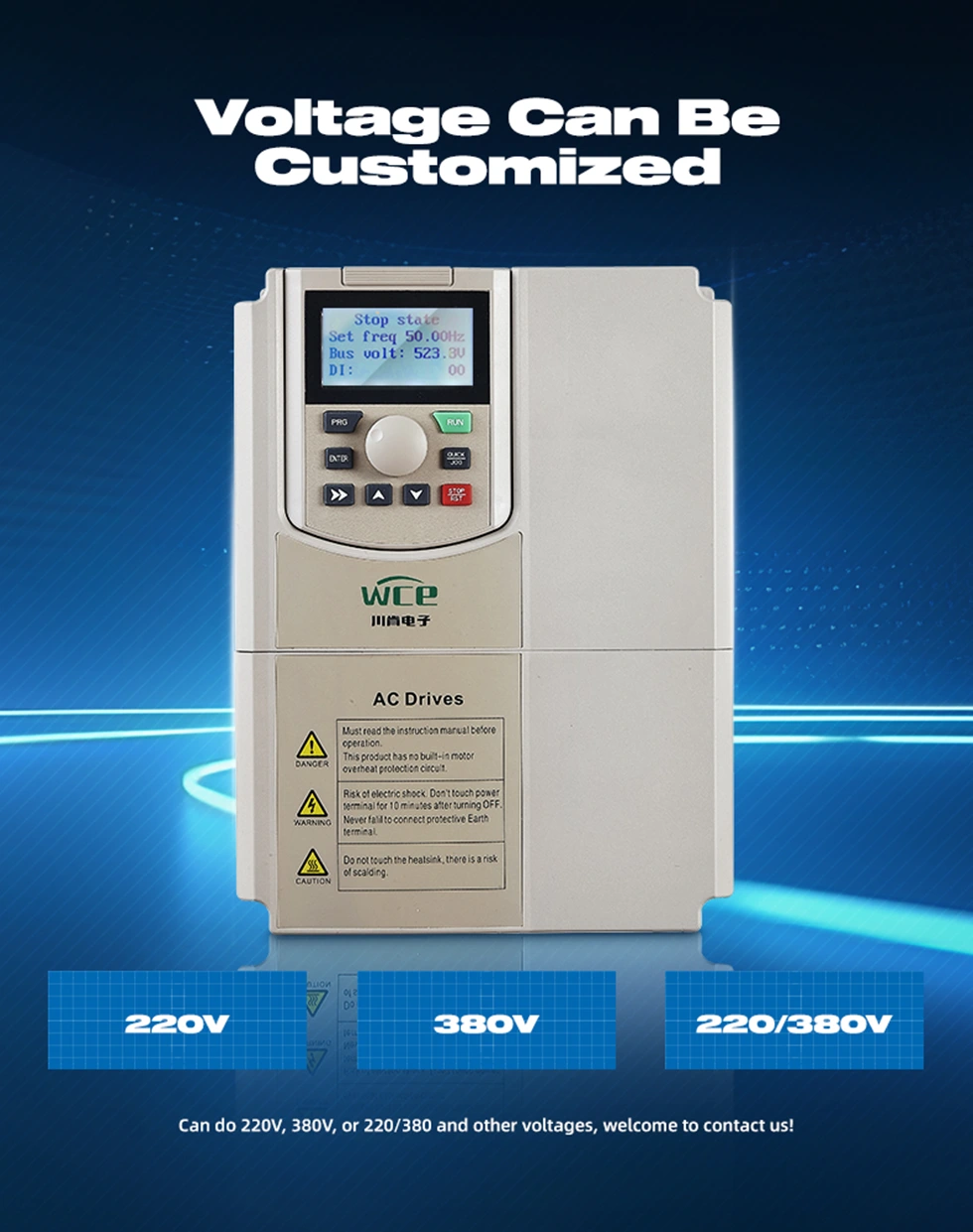

Various types of input and output modes can be customized:

1.3P 380V input to 3P 380V output.

2. 3P220V input to 3P220V output.

3. 3P660V input to 3P660V output.

4. 1P220V input to 3P 380V output.

5. 1P220V input to 3P220V output.

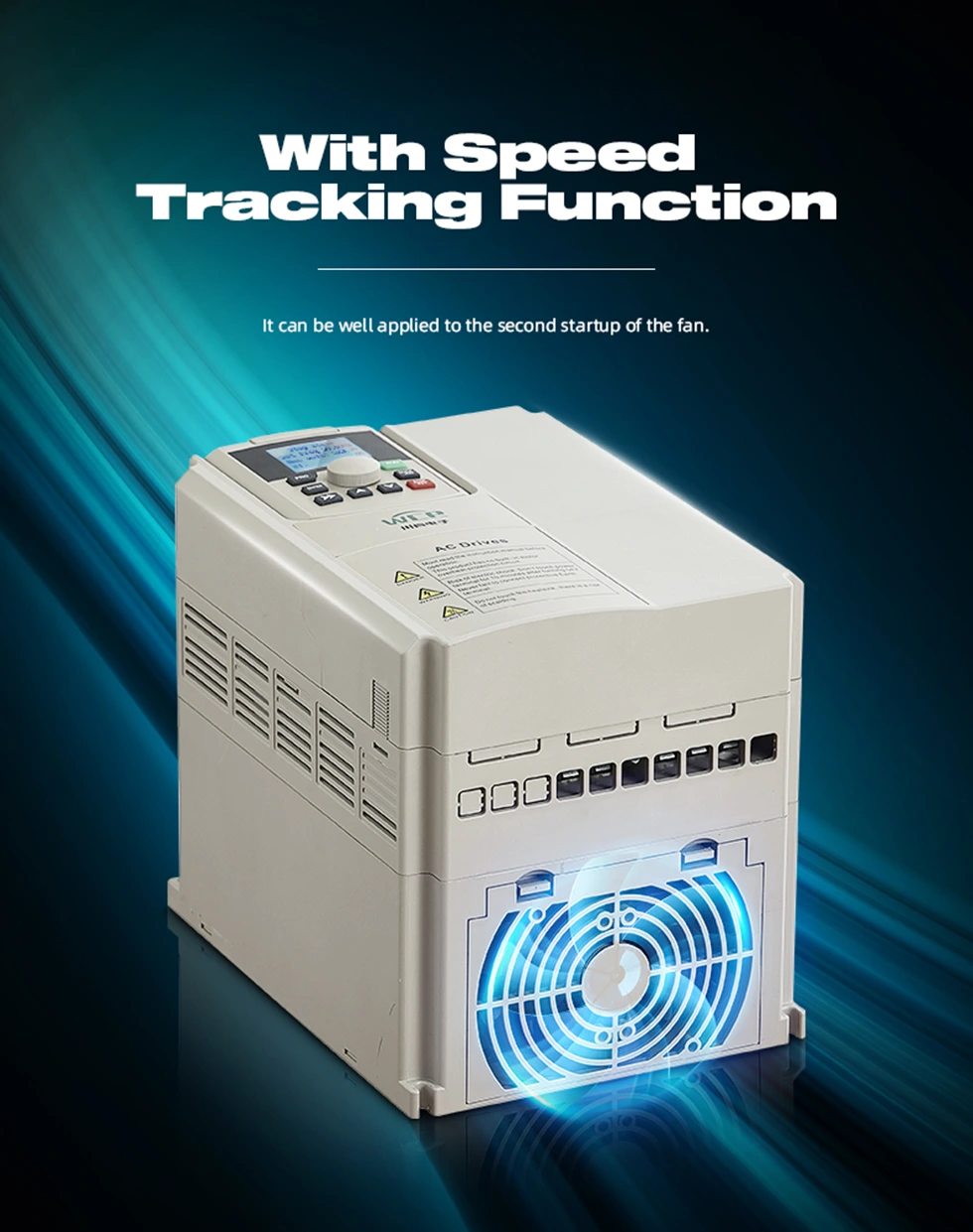

With speed tracking function, can better double start.

It comes with MODBUS RTU communication, and can also implement MODBUS TCP, PRPFIBUS and PROFINET by adding expansion cards.

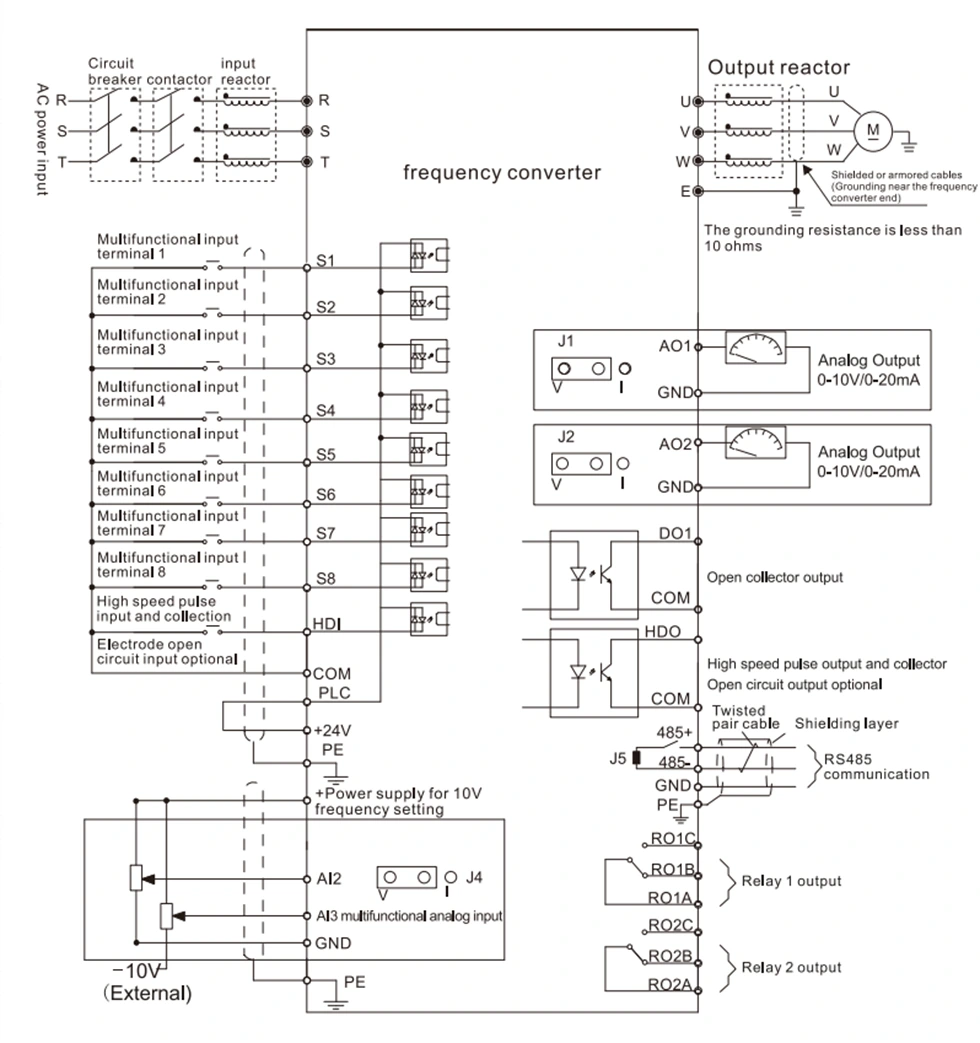

VFD wiring diagram.
