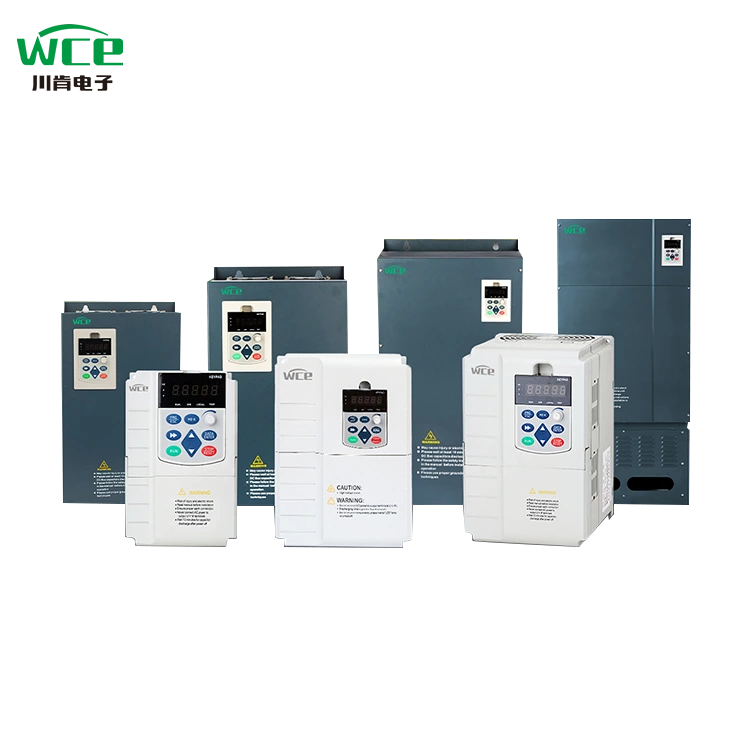

High Performance Three Phase AC Drive

WCE's SCK300 series is a high performance, versatile frequency converter designed for industrial automation, widely used in fans, pumps, conveyor belts, crushers and other equipment. Its core adopts advanced vector control technology, and has the characteristics of high precision speed regulation, energy saving, high efficiency and stable operation to meet the needs of diverse industrial scenarios. In addition, the SCK300 can be upgraded to the SCK350 by upgrading the control board, after which expansion cards can be added and applied to equipment such as cranes.

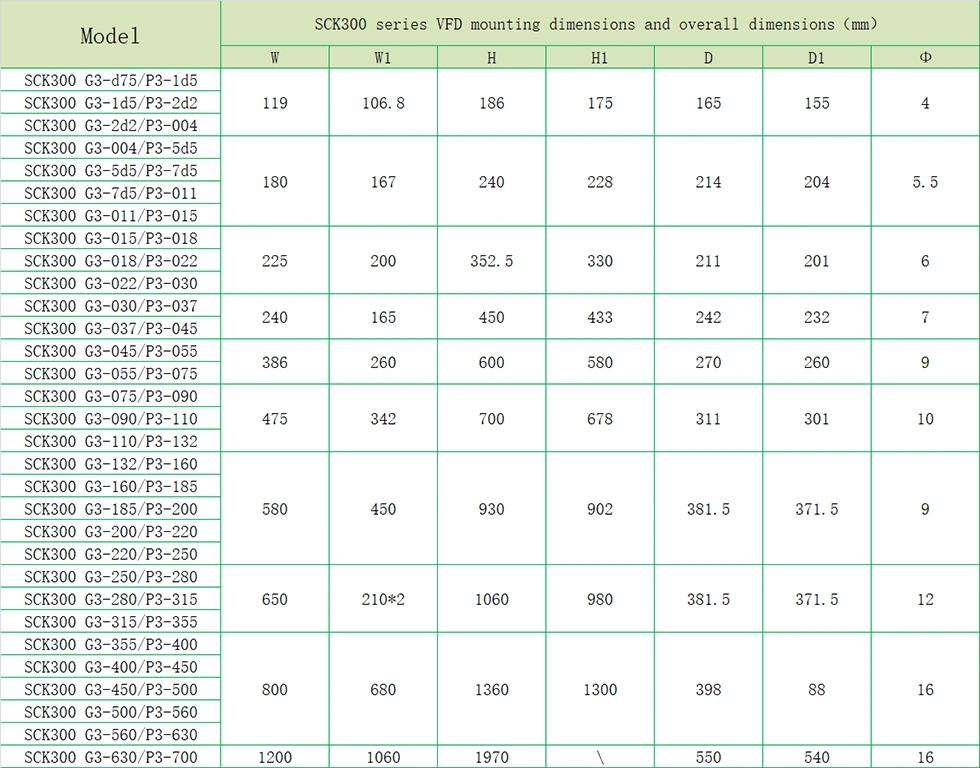

Product Parameter (Specification)

Product Feature

●I/O features

◆Input voltage range: 220V/380V/660V±15%

◆Input frequency range: 47 ~ 63Hz

◆Output voltage range: 0 ~ rated input voltage

Output frequency range: 0 ~ 400Hz

●Peripheral interface features

◆Programmable digital input: 8 input

◆Programmable analog input: AI1:0 ~ 10V input, AI2:0 ~ 10V or 0 ~ 20mA input

◆Open collector output: 1 output

◆Relay output: 2 outputs

◆Analog output: 2 outputs, 0/4 ~ 20mA or 0 ~ 10V respectively

●Technical performance characteristics

◆Control mode: no PG vector control, V/F control, torque control.

◆Overload capacity: 150% rated current 60s; 180% rated current 10s

◆Starting torque: no PG vector control: 0.5Hz/150% (SVC)

◆Speed ratio: no PG vector control: 1:100

●Functional Features

◆Frequency setting mode: digital setting, analog setting, serial communication setting, multi-speed, PID setting, etc.

◆PID control function

◆Multi-speed control function: 16 speed control

◆Swing frequency control function

◆Instantaneous power failure without stopping function

◆QUICK/JOG key function: multi-function shortcut key freely defined by users

◆Automatic voltage adjustment function: When the power grid voltage changes, it can automatically keep the output voltage constant

◆Provide up to 25 kinds of fault protection functions: over current, over voltage, under voltage, over temperature, phase loss, overload and other protection functions

Product Application

Products can be used in metallurgy and chemical industry, compressors, cranes, municipal engineering occasions.

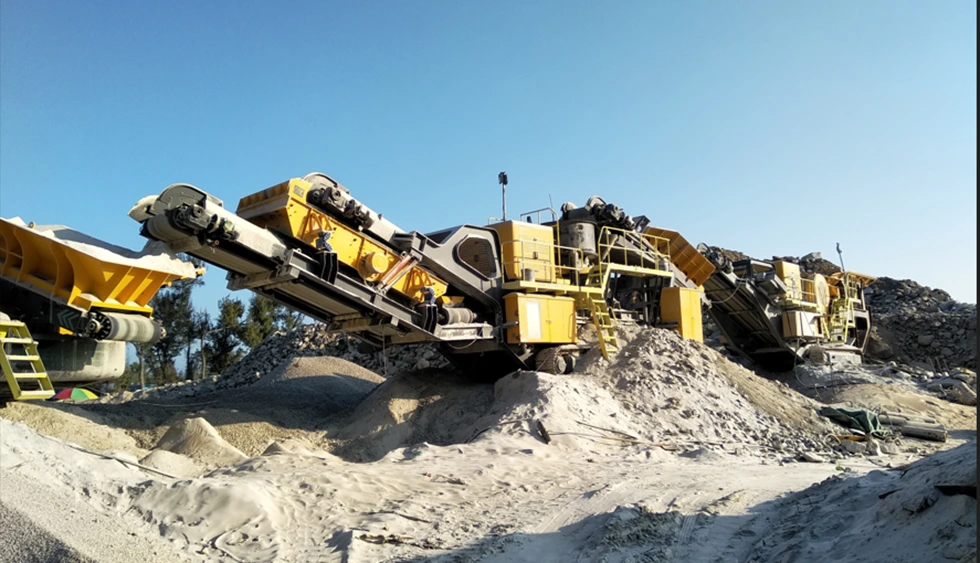

Crusher, sort stones of different sizes.

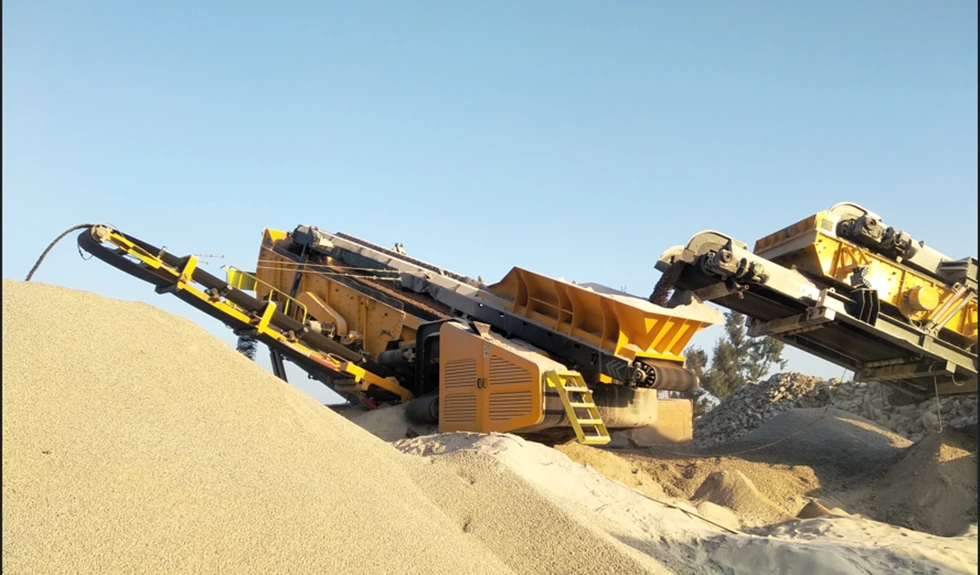

VFD is widely used in the crusher industry, it can be used in the impact crusher, jaw crusher, cone crusher, hammer crusher, etc. Can be used in high-power host, reduce the starting current, adjust the speed of the crusher, when the speed is reduced, but also can save about 50%. The frequency converter used in the crusher can reduce the mechanical impact and extend the service life of the equipment.

Field irrigation

In agricultural irrigation, VFD for constant pressure water supply is almost standard. First of all, in the process of starting the pump, the VFD can gradually increase its operating frequency, so that the pump can run slowly, so that the water does not cause too much impact on the pipeline. The VFD can then be used in conjunction with a remote pressure gauge or pressure sensor to equalize the pressure in our pipes. Finally, the VFD can control the pressure protection pipeline, but also through its own overload, underload, overpressure, underpressure protection to reduce the damage of the pump.

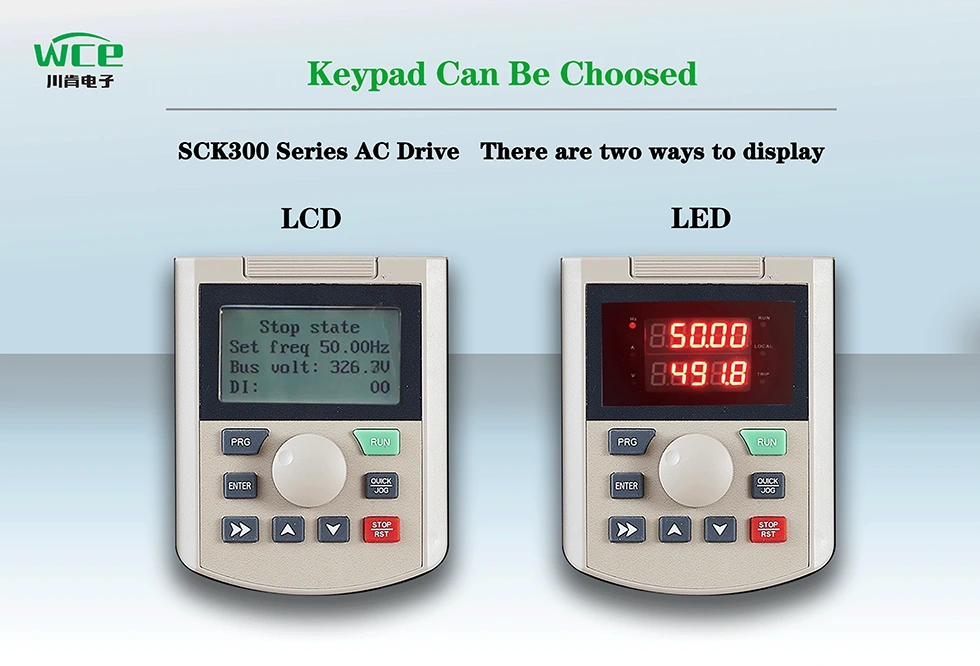

Two display modes are available:

1.LCD display: Come with Chinese and English display, you can also customize Russian, Portuguese, Spanish, Persian and other languages.

2.LED display: traditional digital tube display, double line display, observe two sets of data at the same time.

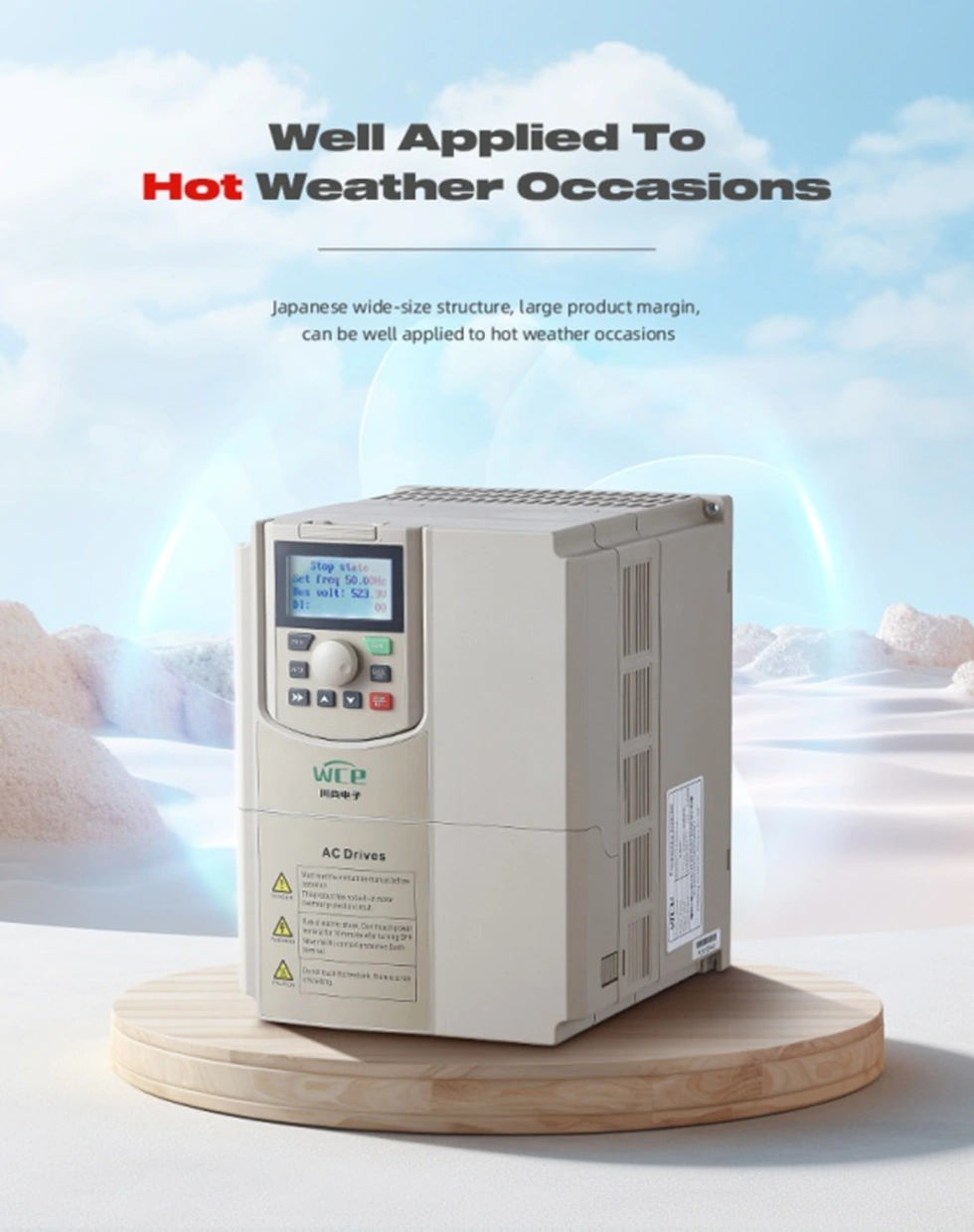

VFD volume is large structure, larger radiator, product utilization rate, can work normally in hot environment such as tropical.

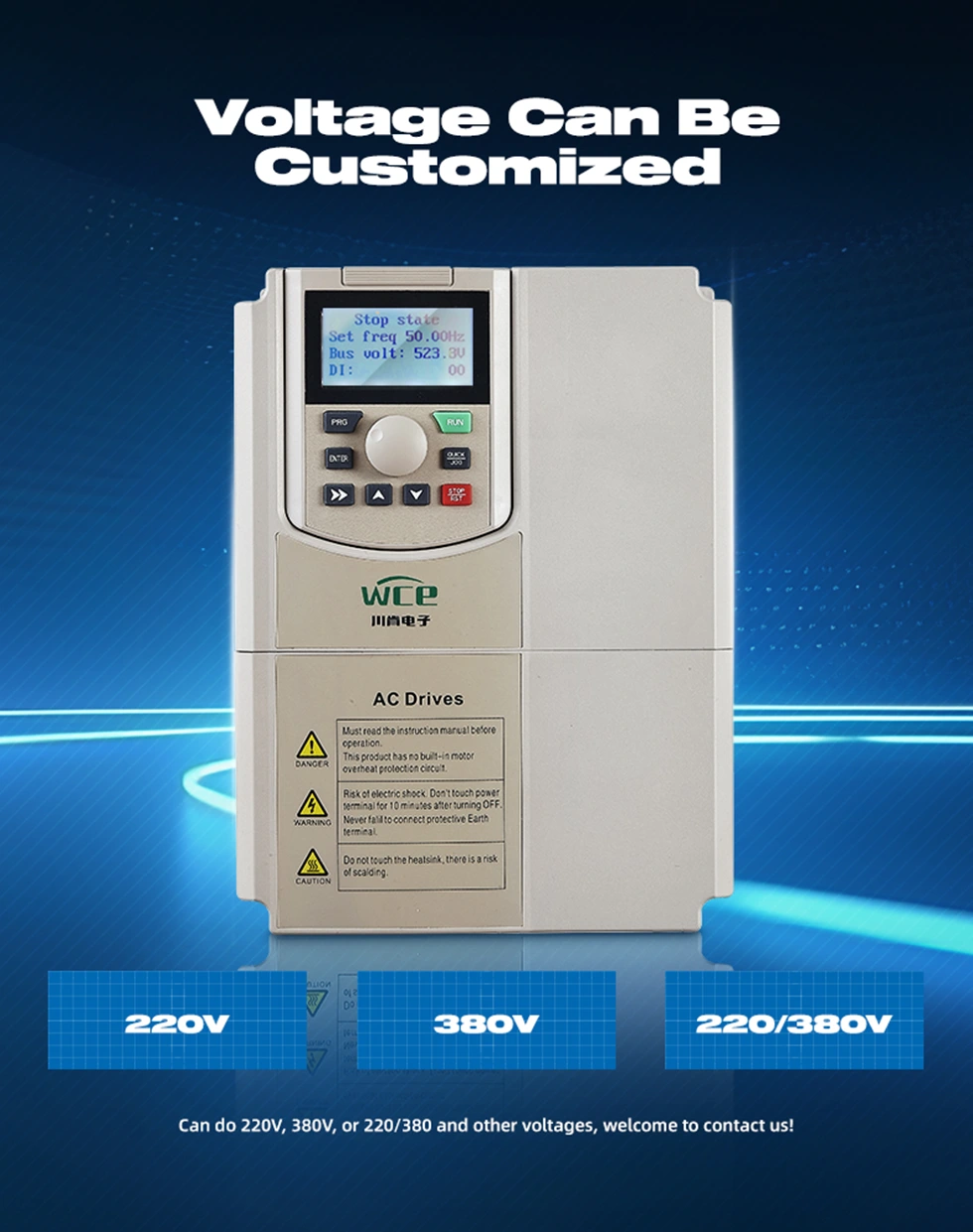

Various types of input and output modes can be customized:

1.3P 380V input to 3P 380V output.

2. 3P220V input to 3P220V output.

3. 3P660V input to 3P660V output.

4. 1P220V input to 3P 380V output.

5. 1P220V input to 3P220V output.

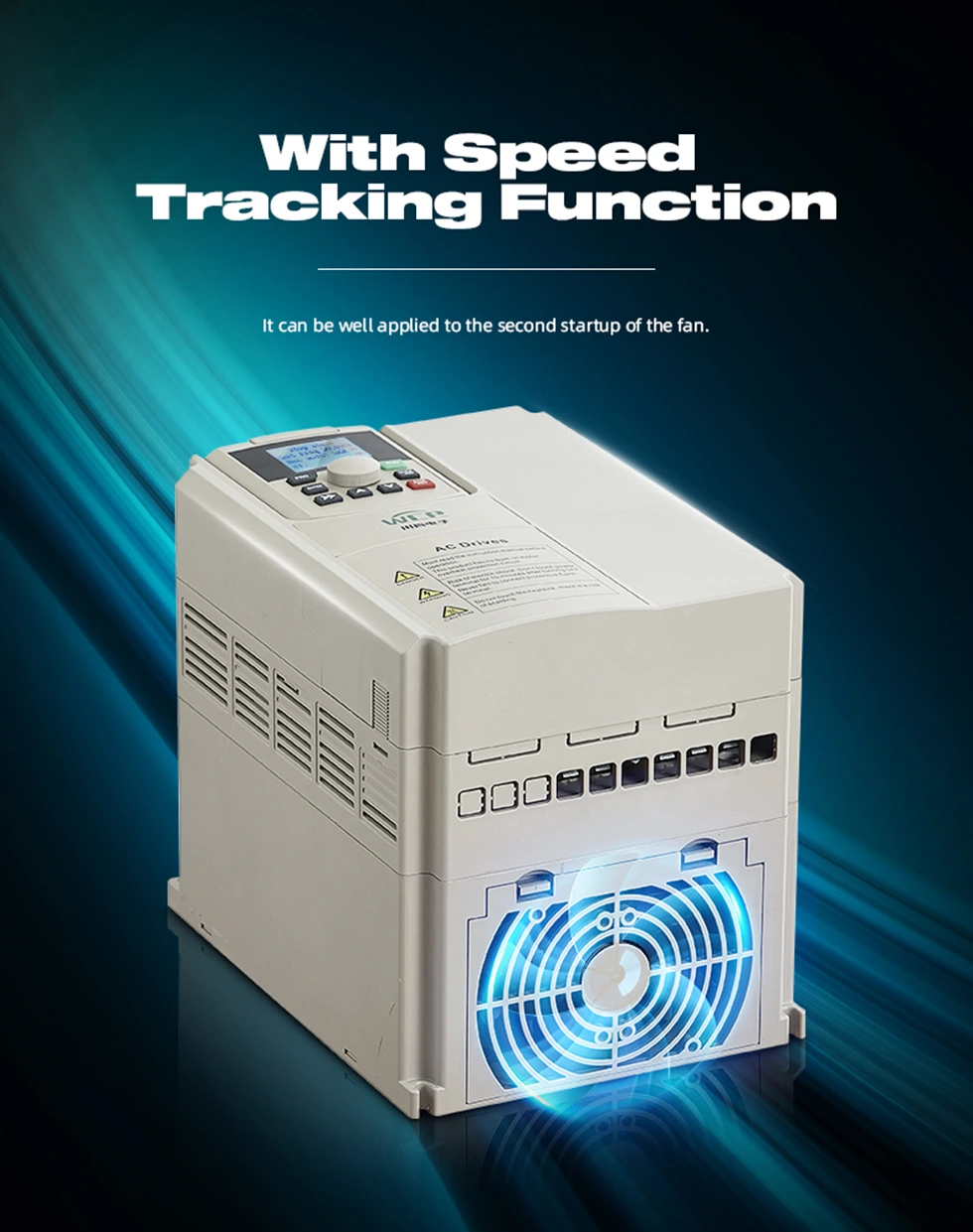

With speed tracking function, can better double start.

It comes with MODBUS RTU communication, and can also implement MODBUS TCP, PRPFIBUS and PROFINET by adding expansion cards.

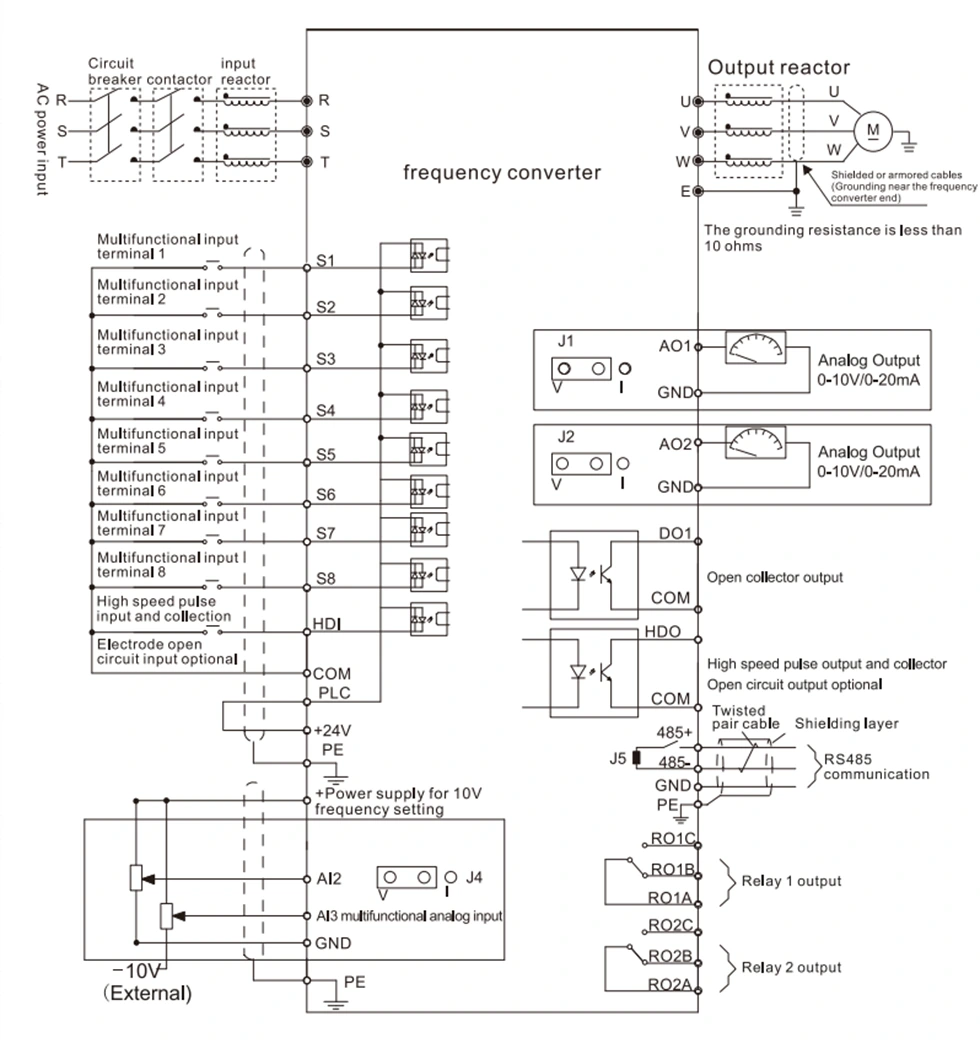

VFD wiring diagram.
